Relay 240v 10A Power Relay DPDT x 4 Units

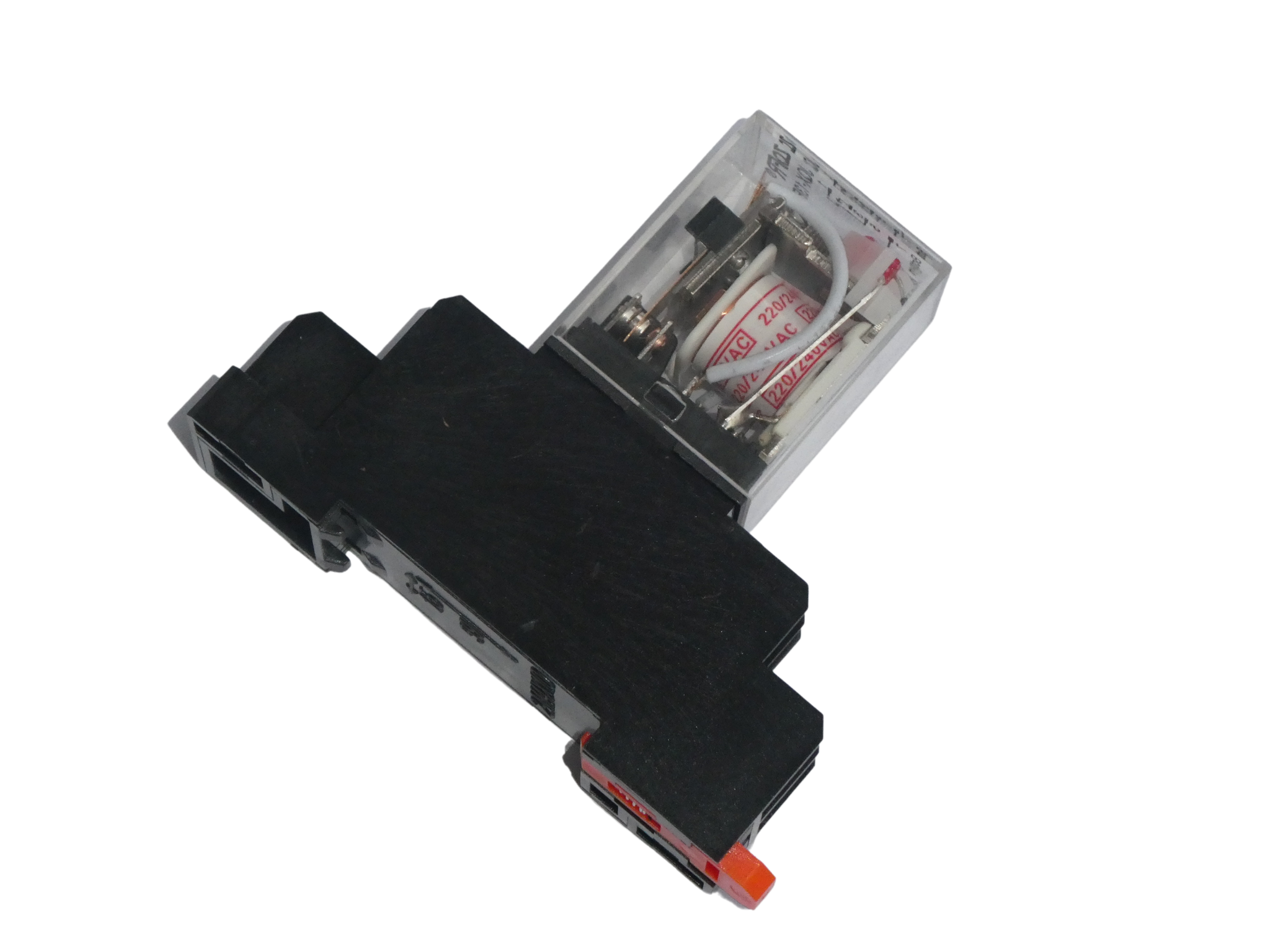

4 X 240v 10A Power Relay DPDT With Base

Normally Open and Normally Closed

MEDIUM DUTY

• Standard Compliance: IEC/EN 60947-5-1; CE & UL certified
• Contact Form: 2Z (two changeover contacts)
• Contact Material: Silver alloy
• Rated Load (Resistive): 10 A at 250 VAC / 30 VDC
• Maximum Switching Voltage:
  • AC: 250 V
  • DC: 30 V
• Maximum Switching Power:
  • AC: 2500 VA
  • DC: 300 W
• Electrical Endurance: ≥ 100,000 operations
• Mechanical Endurance: ≥ 10 million operations
• Insulation Resistance: ≥ 100 MΩ (at 500 VDC)
• Dielectric Strength:
  • Coil–Yoke / Between Contact Groups: 1500 VAC
  • Between Open Contacts: 500 VAC
• Operate Time (at 25 °C, rated voltage): ≤ 25 ms
• Release Time (at 25 °C, rated voltage): ≤ 25 ms
• Shock Resistance: 100 m/s² (11 ms pulse)
• Vibration Resistance: 1 mm double amplitude (10–55 Hz)
• Coil Power Consumption: 0.9 W (DC) / 1.8 VA (AC)
• Pick-Up Voltage: ≤ 80% of rated voltage
• Release Voltage: ≥ 10% (DC) / ≥ 20% (AC)
• Max Voltage: 110% of rated coil voltage
• Ambient Temperature: −25 °C to +55 °C
• Relative Humidity: ≤ 90% RH at +20 °C
• Mounting Orientation: Any position
• Terminal Types: Plug-in or PCB mount
• Dimensions: 27.5 × 21.5 × 35.5 mm
• Available Coil Voltage:
  • 240v

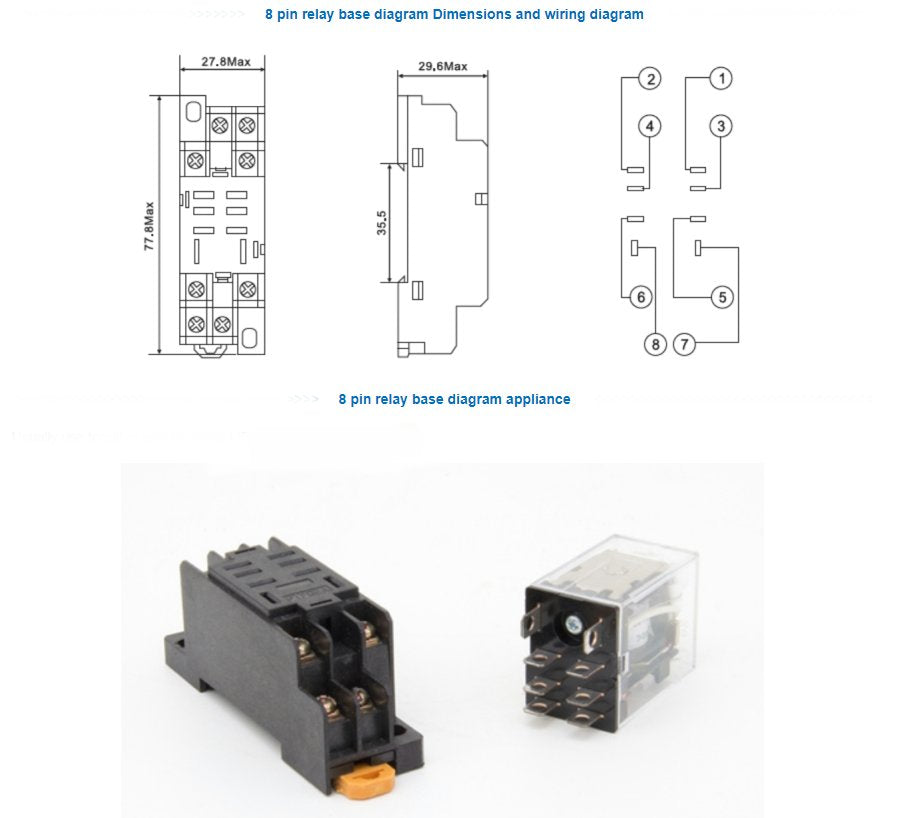

• Matching Sockets:
  • CZT08A-E, CZT08A-02, CZT08B-01 (screw terminal / rail installation)
  • Socket dimensions: 68–72 mm length × 23–31 mm width
• Mounting Types: Plug-in, PCB, lateral flange, and top flange
• Optional Features:
  • D: With status indicator
