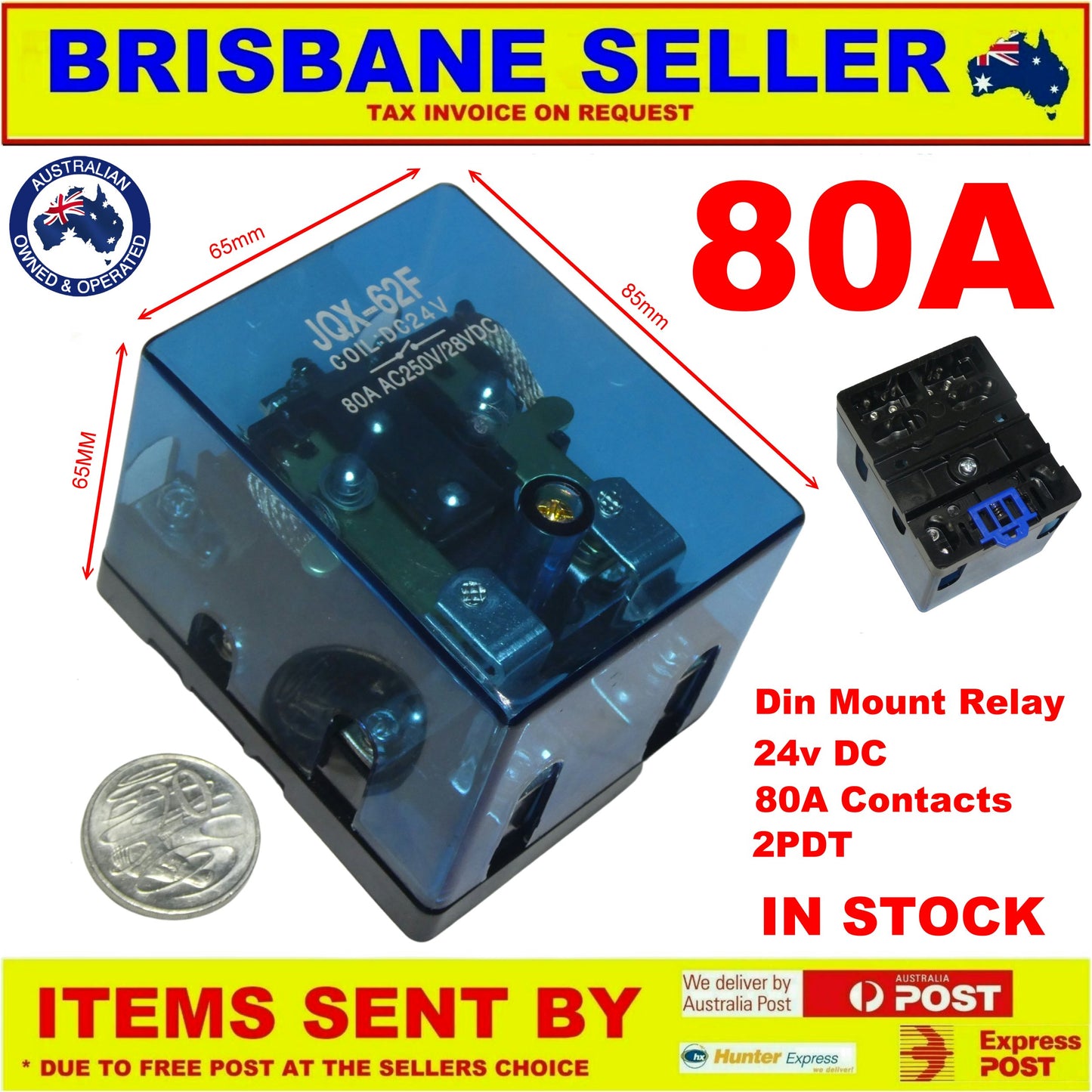

Relay 24v 80A Power Heavy Duty
SALE
Fubu Australia
$34.99 $39.99
24v Coil
240v 80A Power Relay Contacts

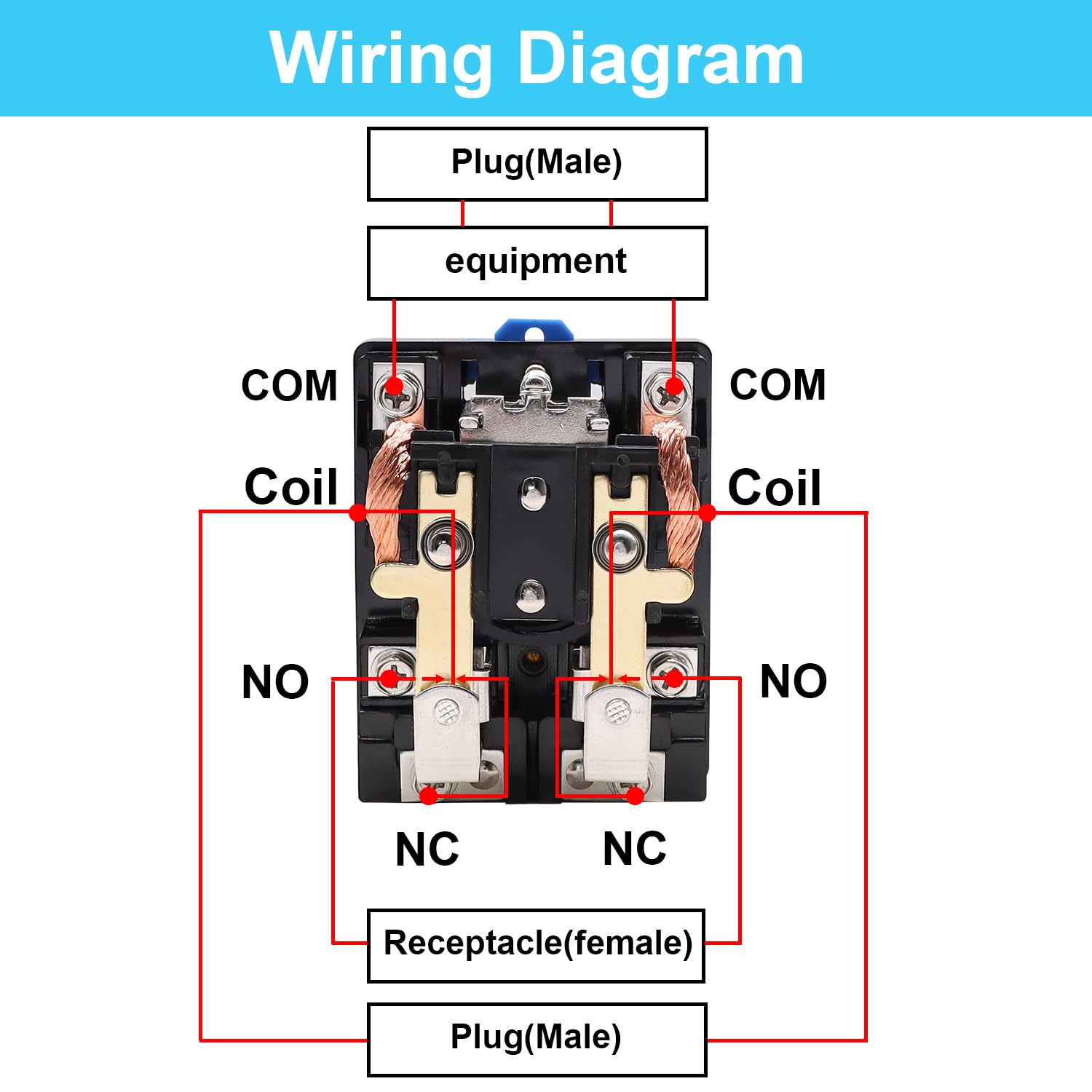

Normally Open and Normally Closed
Heavy Duty
| Model number | JQX-62F series |
| Contact material | Silver alloy; Copper |
| Contact form | SPDT; DPDT |
| Contact rating | 80A@28Vdc/250Vac; 120A@28Vdc/250Vac |
| Rated coil voltage | DC: 24v |
| Dielectric strength | 2,500Vac, 50/60 Hz for 1 min between coil and contacts 1,500Vac, 50/60 Hz for 1 min between opening contacts |
| Pick-up voltage | DC types: 75% max; AC types: 80% max |
| Drop-out voltage | DC types: 10% min; AC types: 30% min |
| Operation voltage | 110% max |
| Contact resistance | 100mΩ max |
| Mounting | Screws |
| Mechanical life | 1x105 operations min |
| Electrical life | 5x104 operations min |
| Insulation resistance | 100MΩ min. at 500 VDC |
| Operating temperature | -25 to 55 ℃ (-13 to 131 ℉) |
| Operating humidity | 35 to 85% RH, no condensation |
| External dimensions | 1Z: 73*67.5*59mm; 2Z: 88.5*67.5*64.5mm |
| PCS/Box | 4 |
| Alias name | JQX-62F series power relay, electric relay, electrical relay |
